HIGH-POWER SERIES

WV300 series motor controllers

Our highest-power controller family: up to 16 kW peak across 48 to 96 V, for e-motorcycles, L5 e-autos and L5 cargo three-wheelers. Designed and built in India.

Request a quote See part numbers

Part numbers

Part number	System voltage (V DC)	Phase current (Arms)	Power rating (kW)
WV3635	48 / 60	350	12
WV3641	48 / 60	410	15
WV3725	48 / 60 / 72	250	10
WV3735	48 / 60 / 72	350	12
WV3745	48 / 60 / 72	450	16
WV3935	48 / 60 / 72 / 96	350	14

Specifications

Applications: E-motorcycles, L5 e-auto rickshaws, L5 cargo three-wheelers
Motor mounting: Mid-mount or hub-mount motors
System voltage: 48 V, 60 V, 72 V, 96 V
Peak power: up to 16 kW
Phase current (max): 450 Arms
Peak DC current: up to 250 A for 30 s
Controller hardware efficiency: ~97%
Motor types: PMSM, BLDC
Control: FOC / vector control, torque control
Position sensor: Hall sensors, incremental encoder (A, B, I, Z), sin-cos encoder or resolver
Motor temperature sensor: NTC or PTC
Ride modes: 4, including reverse
Regenerative braking: Programmable regen current
Communication: CAN 2.0B, 11-bit identifier
Diagnostics: UDS over CAN: firmware update, configuration and diagnosis
Over-the-air updates: Supported through a connected instrument cluster, applied over CAN
Functional safety: Hardware design compliant with ASIL B requirements
Connector: 23-position; mating connector TE Connectivity 770680-1 or equivalent
Other functions: Limp-home mode, charger interlock, motor enable/disable, programmable output for cooling fan or e-clutch
Protections: Short circuit, overvoltage and undervoltage, overcurrent, controller and motor over-temperature, motor overrun, isolated power and control sections
Cooling: Natural or forced
Operating temperature: -10 to +60 °C
Ingress protection: IP67, including sealed terminals
EMI/EMC: AIS 004, Part 3
Weight: ~2.4 kg
Size (W x L x H): 148 x 212 x 94 mm

Need the datasheet as a PDF? Request it from Downloads.

Views

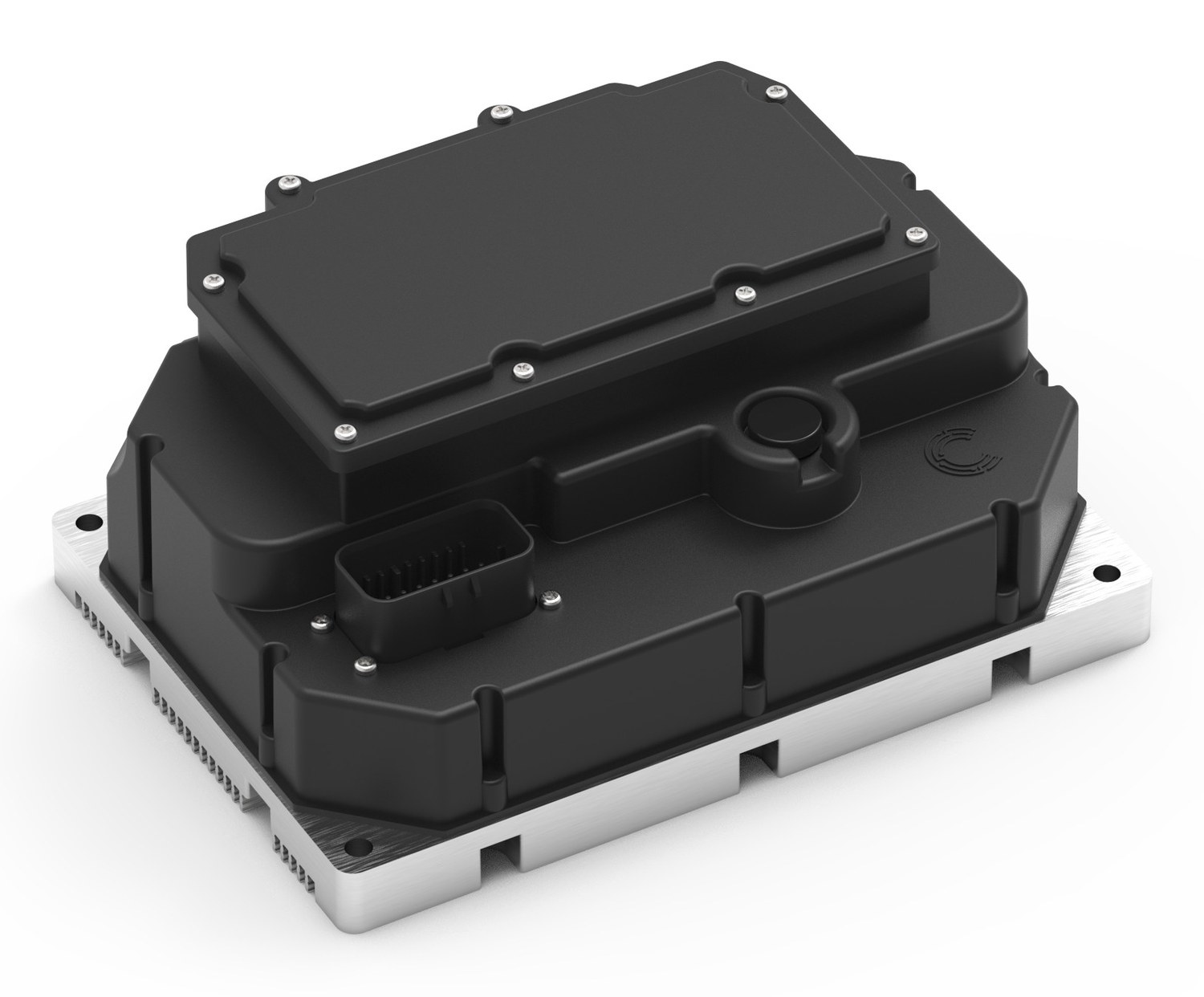

WV300 controller: cover on, connector side — Cover on, connector side

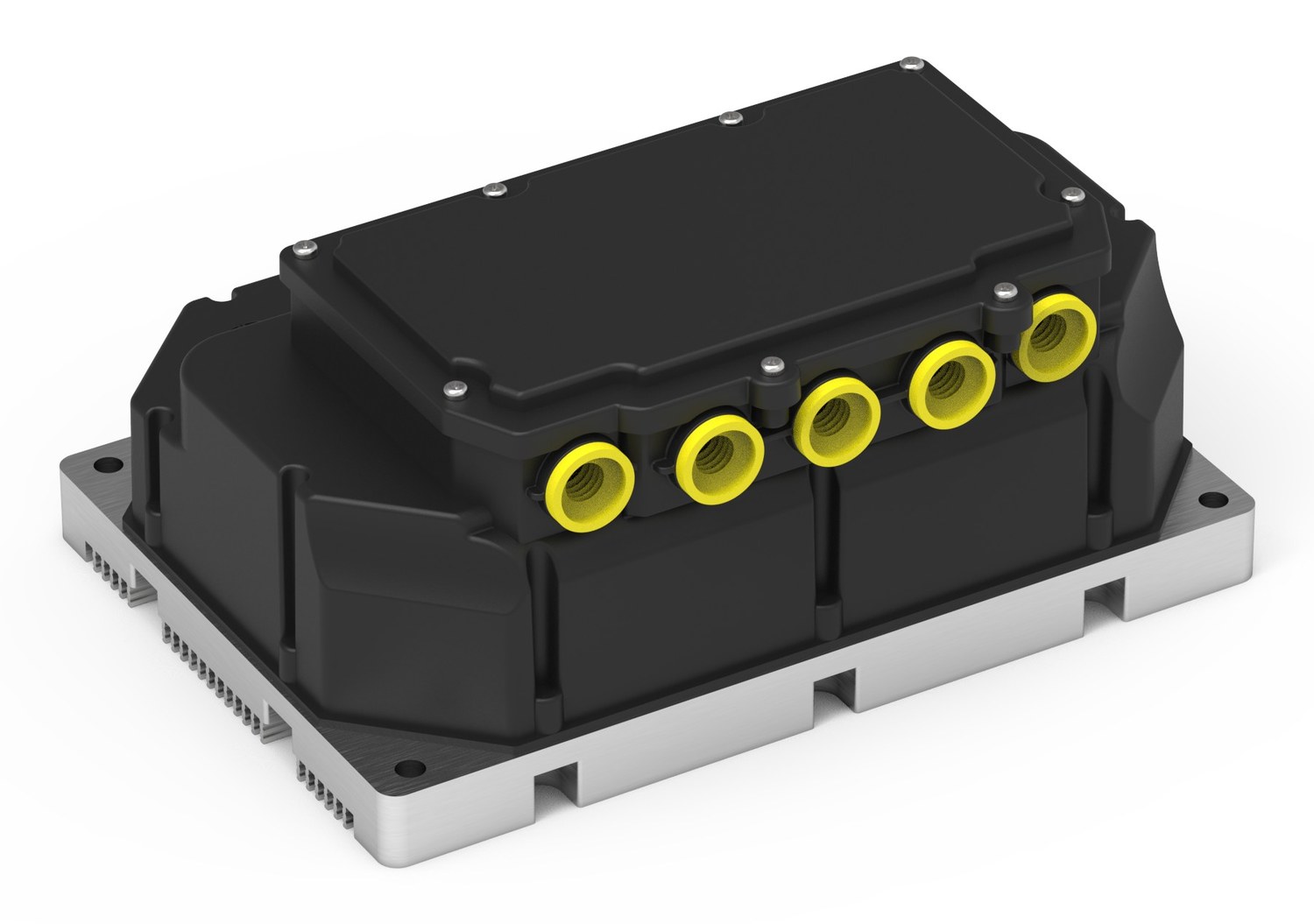

WV300 controller: cover on, cable-entry side — Cover on, cable-entry side

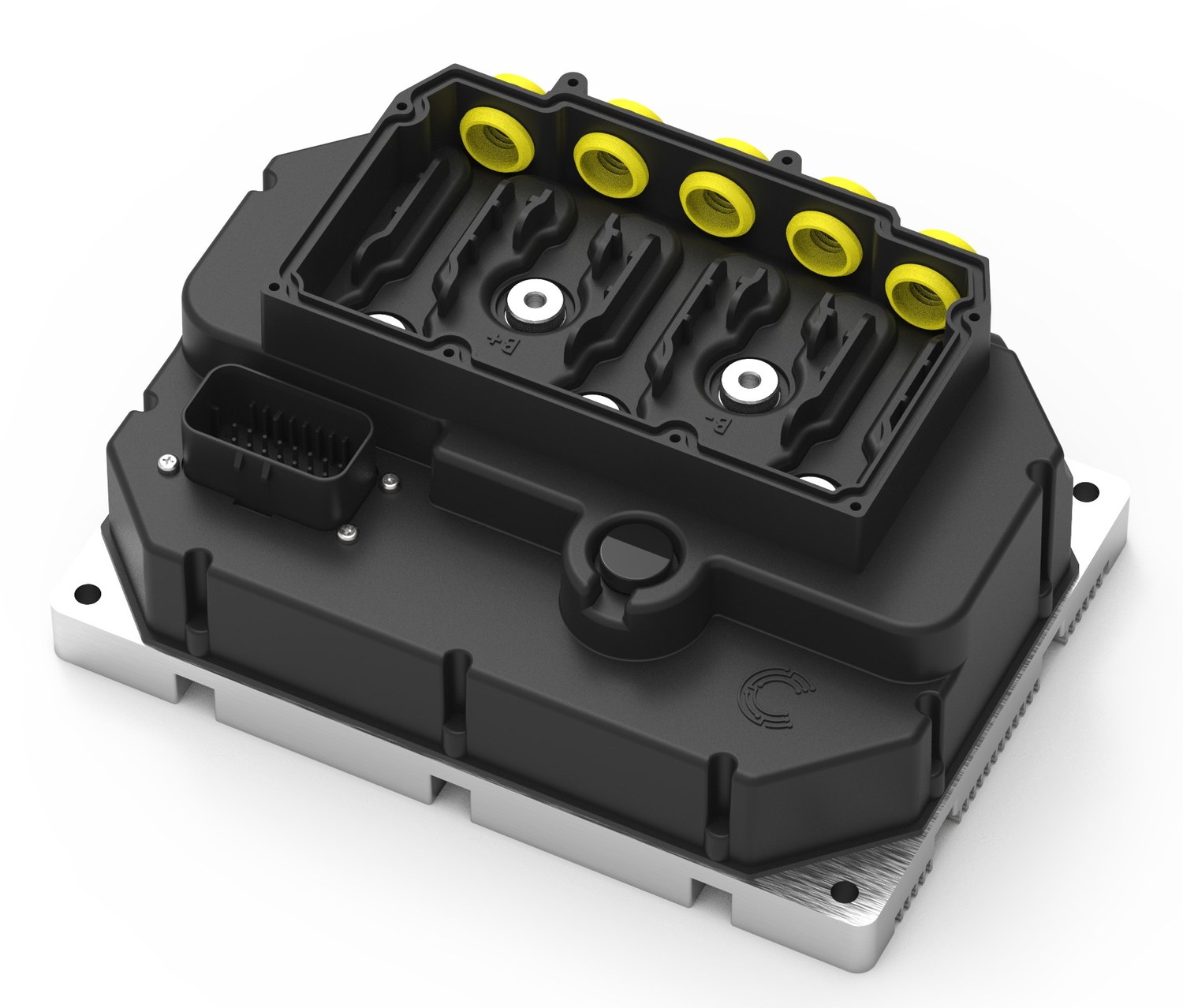

WV300 controller: cover off, connector side — Cover off, connector side

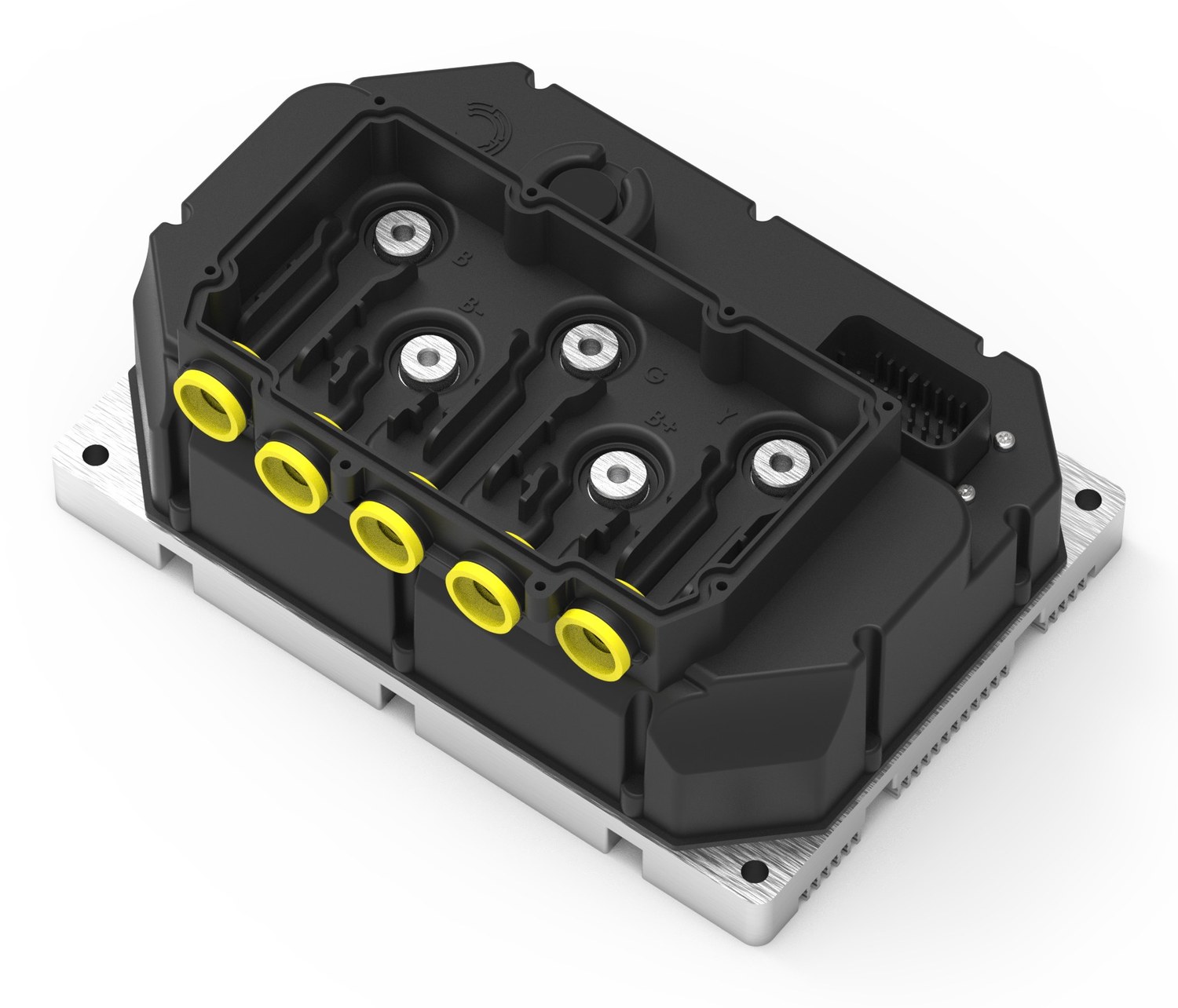

WV300 controller: cover off: motor phase and battery terminals — Cover off: motor phase and battery terminals

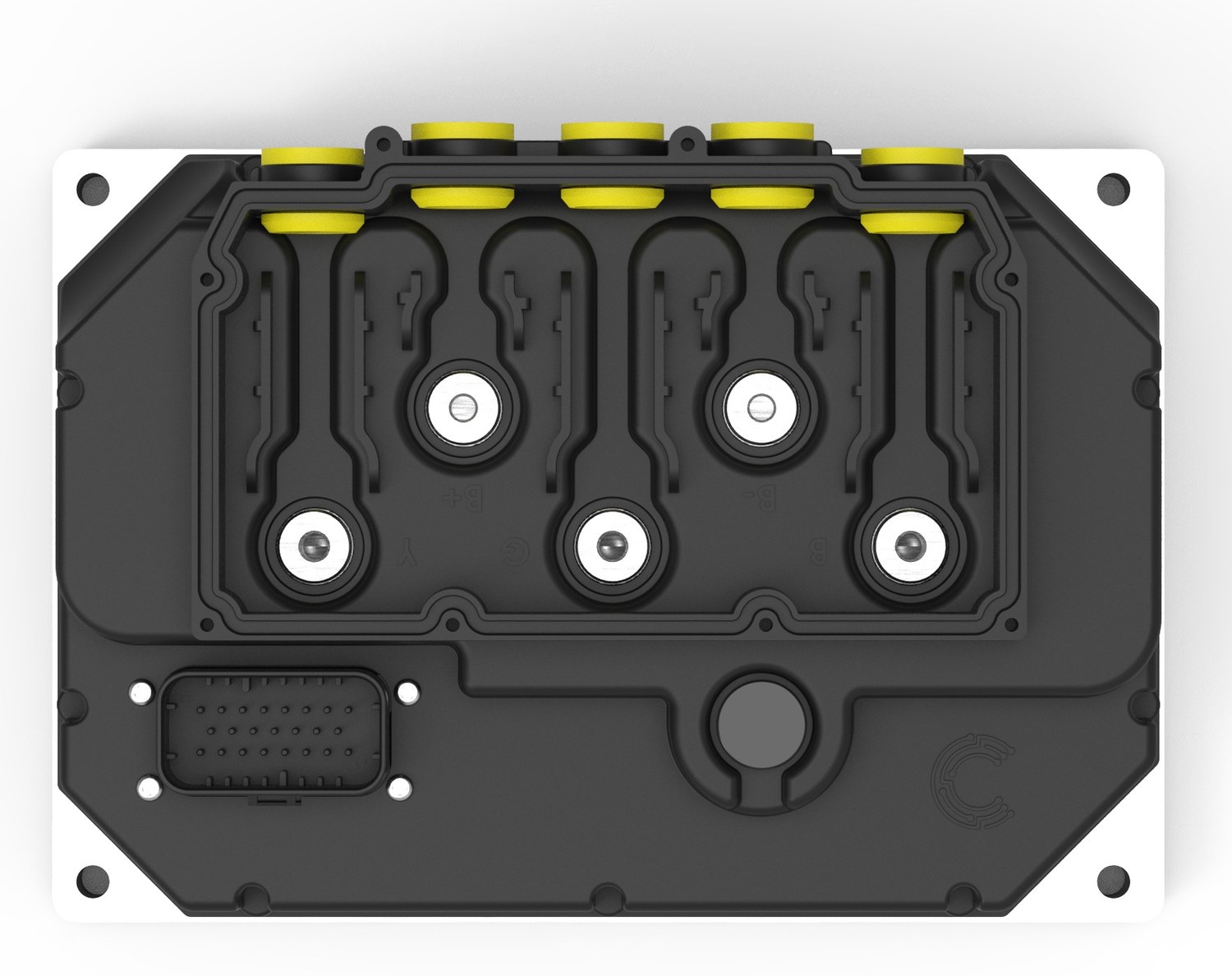

WV300 controller: top view, cover off — Top view, cover off

Dimensions

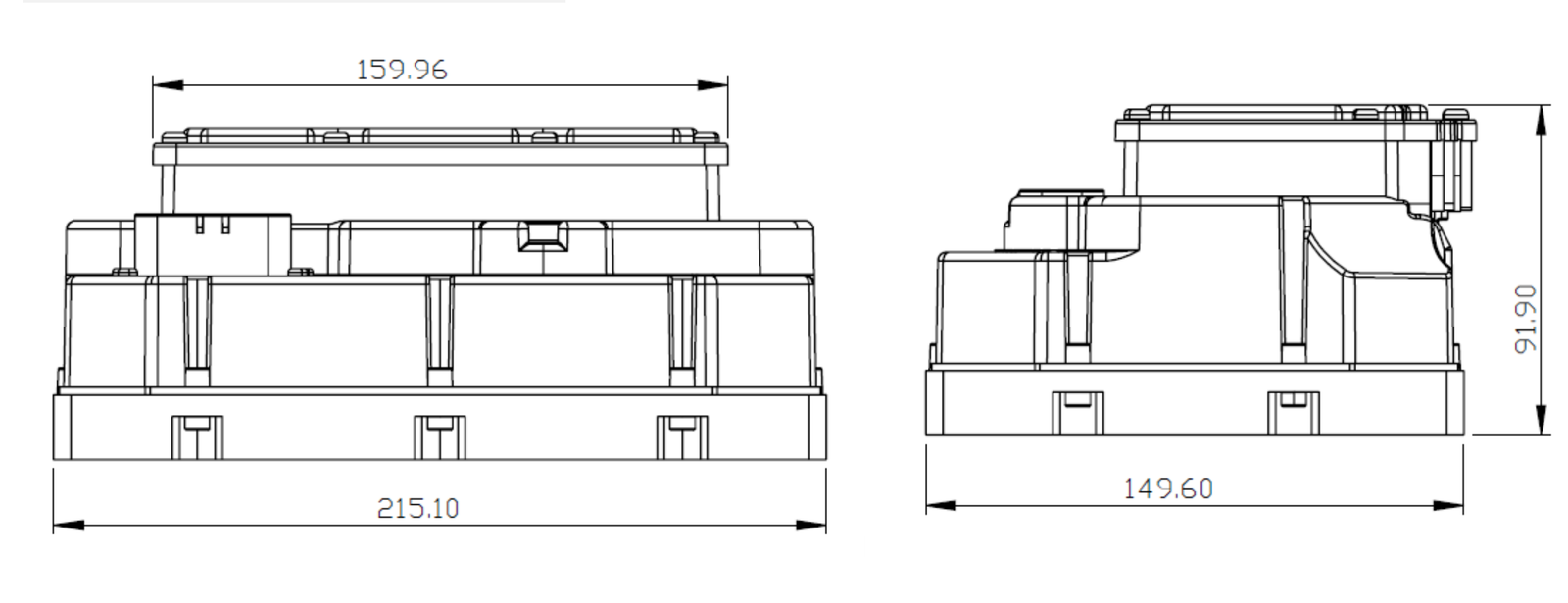

WV300 series dimension drawing — Dimensions in mm. Draft drawing.

Connector pinout

23-position connector. Mating connector: TE Connectivity 770680-1 or equivalent.

Pin	Function
1	ADC input, motor temperature sensor
2	Ground
3	Hall +5 V
4	Active low input
5	Throttle +5 V
6	Ignition
7	CAN low
8	CAN high
9	Hall W / Encoder PWM
10	Open drain output
11	Active low input
12	ADC input, throttle

Pin	Function
13	Active low/high input
14	Active low/high input
15	ADC input
16	Hall V / Encoder A / Sin-cos A (multiplexed)
17	Hall U / Encoder A / Sin-cos A (multiplexed)
18	Active low input / Encoder B
19	Ground
20	Active low/high input
21	Active low/high input (reserved for reverse)
22	Active high input
23	Ground

For wiring, use the released datasheet for your part number.

Part of one platform

One software stack

All four series share the same software core, so a vehicle platform can move up in power without starting again.

Tuned to your vehicle

Torque maps and regeneration strategy are set in firmware for each programme.

Built for India

Optimised for Indian drive cycles and rated for heat, dust and vibration.

Local engineering

Hardware, firmware and algorithms are our own, supported by engineers in India.
