MULTI-APPLICATION SERIES

DD700 series motor controllers

One controller family for e-motorcycles, L5 e-auto rickshaws and e-scooters: up to 7.2 kW peak across 48 to 72 V. Designed and built in India.

Request a quote See part numbers

Part numbers

Part number	System voltage (V DC)	Phase current (Arms)	Power rating (kW)
DD716	48	160	2.8
DD721	48	210	4.4
DD722	48 / 60 / 72	230	7.0
DD724	48 / 60 / 72	280	7.2
DD728	48 / 60	280	7.2

Specifications

Applications: E-motorcycles, L5 e-auto rickshaws, e-scooters. DD721 also suits L3 e-rickshaws. For L5 e-auto rickshaws, use DD724 or DD728
Motor mounting: Mid-mount or hub-mount motors
System voltage: 48 V, 60 V, 72 V
Peak power: up to 7.2 kW
Phase current: 280 Arms
Peak DC current: up to 140 A for 30 s
Controller hardware efficiency: ~97%
Motor types: PMSM, BLDC
Control: FOC / vector control, torque control
Position sensor: Hall sensors, incremental encoder (A, B, I, Z), sin-cos encoder or resolver. DD716, DD721 and DD722: Hall sensors only
Motor temperature sensor: NTC or PTC
Ride modes: 4, including reverse
Regenerative braking: Programmable regen current
Communication: CAN 2.0B, 11-bit identifier
Diagnostics: UDS over CAN: firmware update, configuration and diagnosis
Over-the-air updates: Supported through a connected instrument cluster, applied over CAN
Functional safety: Hardware design compliant with ASIL A requirements
Connector: 23-position; mating connector TE Connectivity 770680-1 or equivalent
Other functions: Limp-home mode, charger interlock, motor enable/disable, programmable output for cooling fan or e-clutch, integrated pre-charge control (DD724, DD728)
Protections: Short circuit, overvoltage and undervoltage, overcurrent, controller and motor over-temperature, motor overrun
Cooling: Natural or forced
Operating temperature: -10 to +60 °C
Ingress protection: IP67, including sealed terminals
EMI/EMC: AIS 004, Part 3
Weight: ~1.9 kg
Size (W x L x H): 214 x 135 x 82 mm

Need the datasheet as a PDF? Request it from Downloads.

Views

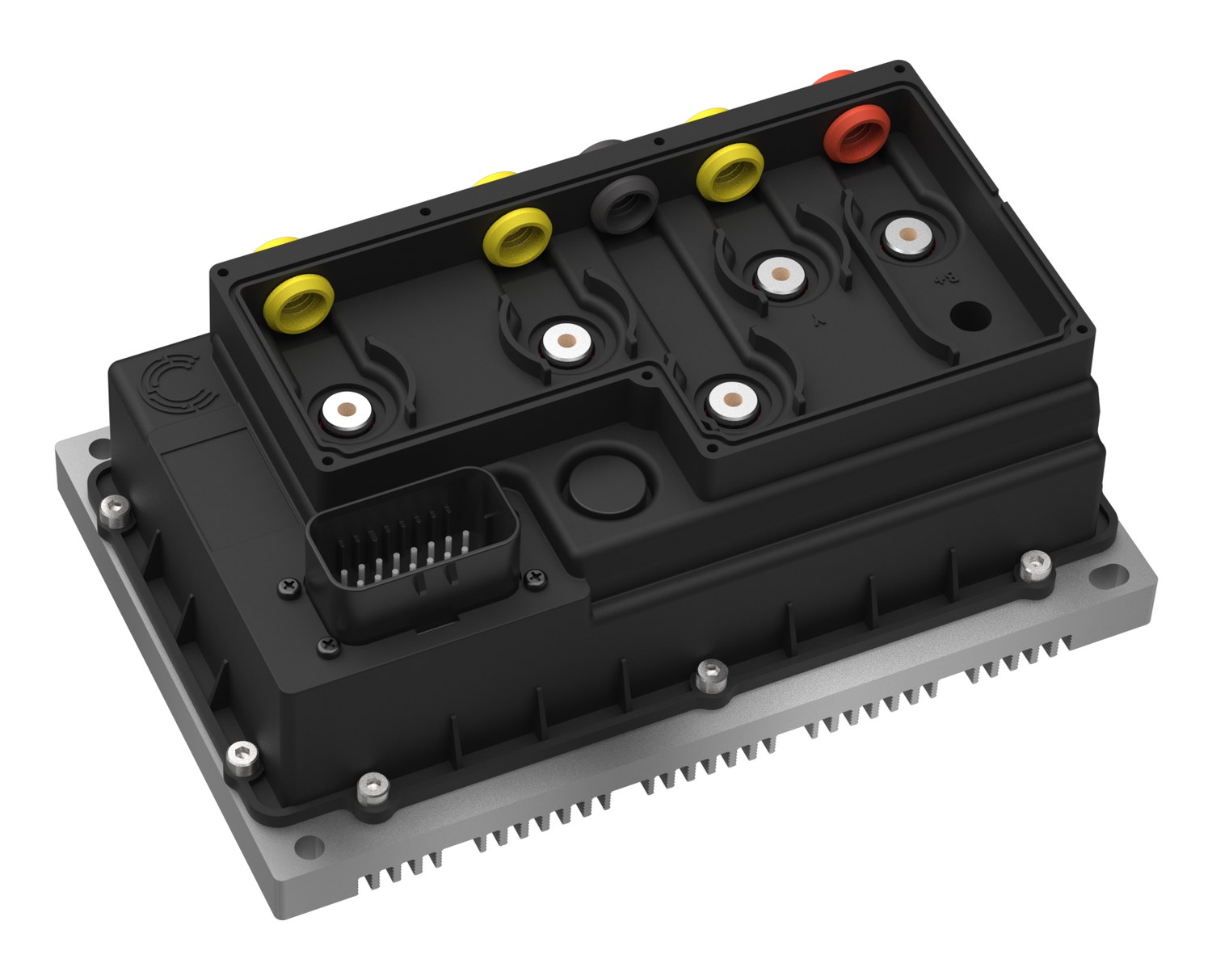

DD700 controller: cover off: motor phase and battery terminals — Cover off: motor phase and battery terminals

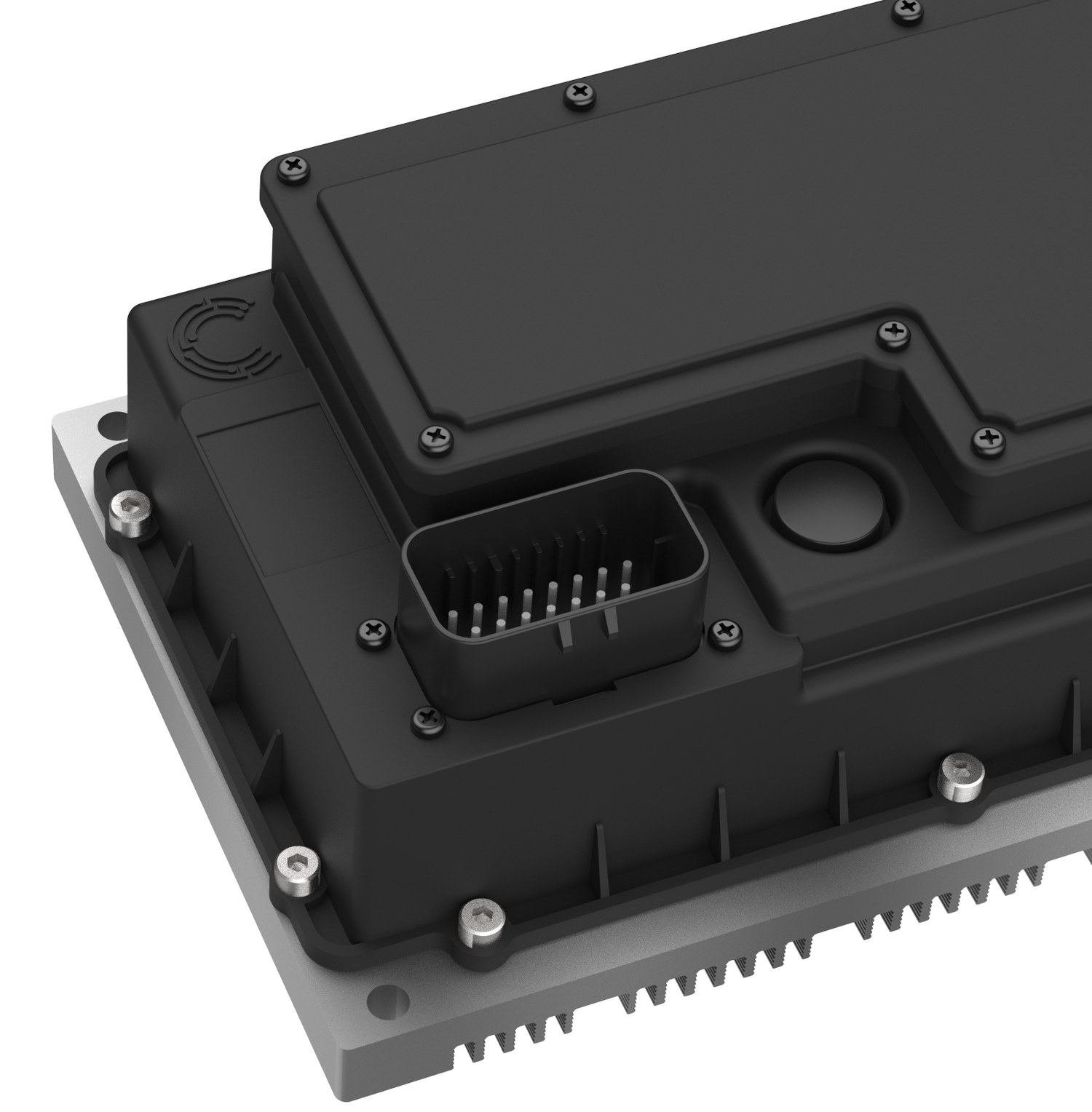

DD700 controller: signal connector, close up — Signal connector, close up

Dimensions

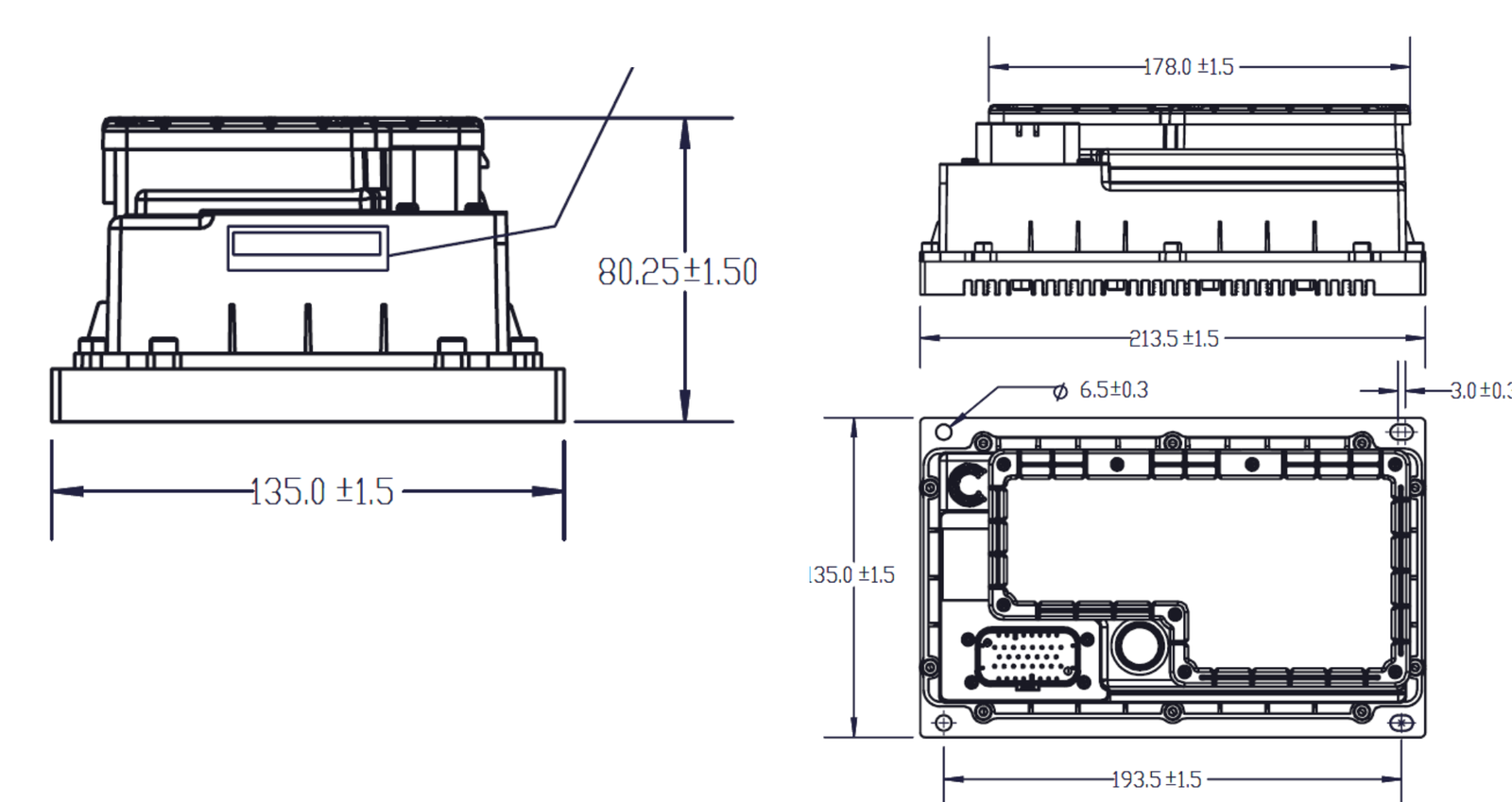

DD700 series dimension drawing — Dimensions in mm.

Connector pinout

23-position connector. Mating connector: TE Connectivity 770680-1 or equivalent.

Pin	Function
1	Open drain output
2	Open drain output
3	Active high output signal
4	Ground
5	Ignition
6	Throttle +ve
7	Position sensor +ve (Hall / sin-cos / ABZ)
8	Hall W / Encoder PWM
9	Active low/high input
10	Active high input
11	Active low/high input
12	ADC input

Pin	Function
13	ADC input, throttle
14	Hall V / Encoder Z / Sin-cos B
15	Hall U / Encoder A / Sin-cos A
16	Active low/high input
17	Active low/high input
18	Active low input
19	Active low input / Encoder B
20	ADC input
21	ADC input, motor temperature sensor
22	CAN L
23	CAN H

For wiring, use the released datasheet for your part number.

Part of one platform

One software stack

All four series share the same software core, so a vehicle platform can move up in power without starting again.

Tuned to your vehicle

Torque maps and regeneration strategy are set in firmware for each programme.

Built for India

Optimised for Indian drive cycles and rated for heat, dust and vibration.

Local engineering

Hardware, firmware and algorithms are our own, supported by engineers in India.
